NJM2872BF05-TE1 LDO Regulator

Sku:

NJM2872BF05-TE1

Features

5V output
High Ripple Rejection 75dB typ. (f=1kHz Vo=3V version)
Output Noise Voltage Vno=30µVrms typ. (Cp=0.01µF)
Output capacitor with 1.0uF ceramic capacitor(Vo≥2.7V: Version)
Output Current Io(max.)=150mA
High Precision Output Vo ±1.0%
Low Dropout Voltage 0.10V typ. (Io=60mA)
Input Voltage Range +2.3 ∼ +14V(Vo≤2.0V version)
ON/OFF Control (Active High)
Internal Short Circuit Current Limit
Internal Thermal Overload Protection
Bipolar Technology

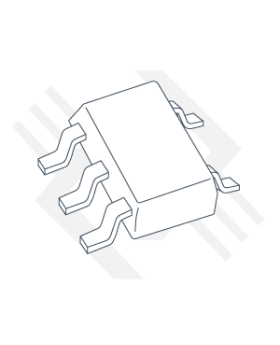

Package Outline SOT-23-5 (MTP5)

Full Description

The NJM2872B is a low dropout voltage regulator series designed with battery powered applications in mind. Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current.

Technical Specifications

Technical Specification
Voltage	5V
Family Voltage Range	1.5-5V
Supply Voltage (max)	14V
Output Current	150mA
Drop-out Voltage	0.1V
Voltage Reference Tolerance	±1%
Ripple Rejection Ratio	75dB
Output Adjustable	No
Noise Bypass Terminal	Yes
Output Noise	-
Quiescent Current	120µA
Output Capacitor	1.0μtyp(Ceramic)
