Active

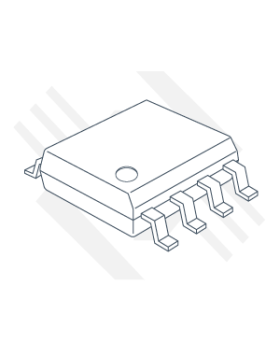

NJM8801E-TE2 Bipolar Input Dual Op Amp
Sku:
NJM8801E-TE2
Features
- High Quality Audio
- Operating Voltage ±2V to ±18V
- Low Noise Voltage 4.5nV/√Hz typ
- Low Distortion 0.0005% typ
- Wide GB 15MHz typ
- Slew Rate 5V/μs typ
- Input Offset Voltage 0.3mV typ
- Input Bias Current 100nA typ
- Voltage Gain 110dB typ
The NJM8801 is a high quality audio dual operational Amplifier with bipolar technology, strikes a balance between MUSES technology and mass-production techniques.
The original process tuning and the assembly technology, based on MUSES technology, make excellent sound and absorbing cost increases.
The characteristics like low noise, wide Bandwidth and low distortion make it suitable for audio preamplifiers, active filters, and line amplifiers.
Number of Circuits | 2 |
---|---|
Supply Voltage (min) | ±2V |
Supply Voltage (max) | ±18V |
Input Offset Voltage | 0.3mV |
Input Offset Current | 5nA |
Input Bias Current | 100nA |
Supply Current | 6mA |
Gain Bandwidth | 15MHz |
Slew Rate | 5V/μs |
Noise | 4.5nV/√Hz(en) |
